Home Products Lagmaster Lagmaster® Plus

Lagmaster® Plus

Product Code: LMP

The Lagmaster® Plus is the ultimate all-in-one pole tool. Specifically designed for use in the Acoustical Ceiling, Data Comm, Fire Sprinkler, HVAC and Electrical Industries. Built to withstand the rigors of daily use on the job site.

The Lagmaster® Plus features a unique all-in-one patented plug-in system which allows you to install multiple types of fasteners to a variety of overhead structures and surfaces.

Use the Lagmaster® Plus to install ceiling wire, jack chain, pre-assembled threaded rod, smooth rod and a variety of other fasteners, safely from the ground.

Pair the Lagmaster® Plus Broom Thread Plug-in with any female broom thread attachment. Such as tree trimming saws, dusters or sanders!

Power the pole with any 3/8″ or 1/2″ drill.

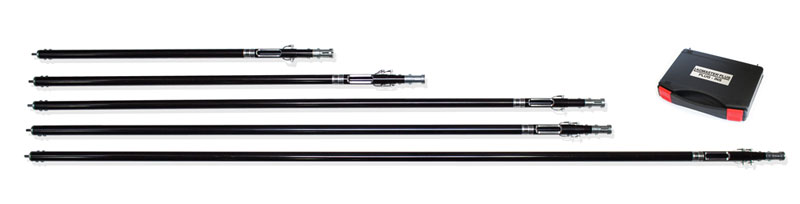

Product Code	Collapsed Length	Extended Length	Stages	Shipping Weight
LMP-6	3′ 6″	5′ 6″	2	6
LMGP-12	4′ 6″	10′ 9″	3	8
LMP-12	6′ 6″	11′ 8″	2	8
LMP-18	6′ 7″	17′	3	10
LMP-24	8′ 7″	23′ 3″	3	11

Where to buy?

Submittal Request

videos

features

All-in-one patented plug-in system allows you to install multiple types of fasteners to a variety of ceiling structures
Includes: LMP Base, LMP Wire Plug (set screw style), LMP Broom Thread, LMP 5/8 Plug, LMP 5/8 VERTIGO, LMP 1/2 Square Drive, LMP 1/4 Hex Plug, LMP Viper Plug, & LMP 1/2 NPT

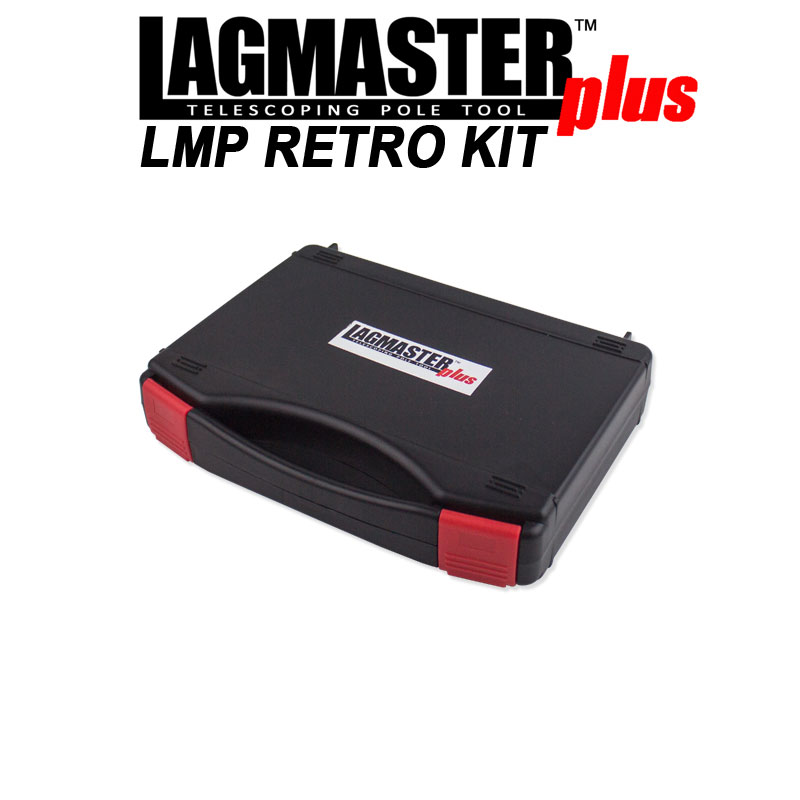

Plug-in heads are kept securely in a plastic container with custom die cut foam
Perfect for applications that are unfit for scissor lifts such as stairwells or in between T-bar
Improves safety by keeping your employees on the ground
Black anodized aircraft quality aluminum
Lightweight and durable
Made in USA

documentation

Lagmaster® Plus Parts Breakdown Lagmaster® Plus Flyer How to replace an LM-STUD

Parts

Item #:	Image:	Description:
LMP Base		Lagmaster® Plus Base – Female receiver, accepts all LMP Plugs – Features recessed 1/2″ female hex socket for Hangermate screws
LMP Wire Plug SS		Lagmaster® Plus Wire Plug – Set screw version – Hangs & wraps 12GA ceiling wire, jack chain or braided wire attached to an I-LAG™ screw
LMP BT Plug		Lagmaster® Plus Broom Thread Plug – Universal broom thread adapter for sanders, dusters, light bulb changers etc.

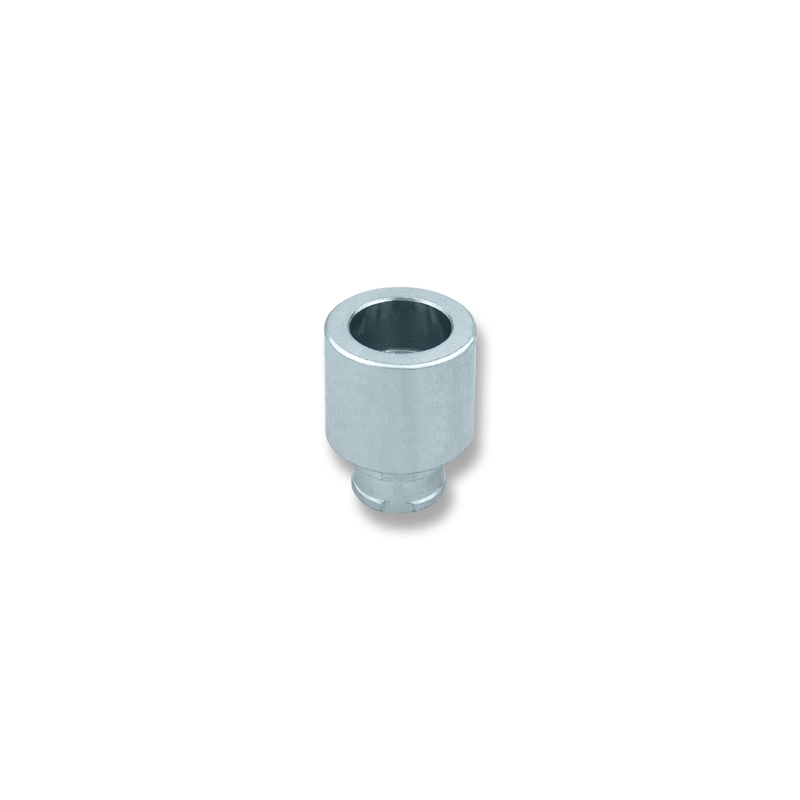

LMP 5/8 Plug		Lagmaster® Plus 5/8" Plug – Open ended 5/8" hex socket - Installs Sammy screws pre-attached to 1/4" or 3/8" threaded rod

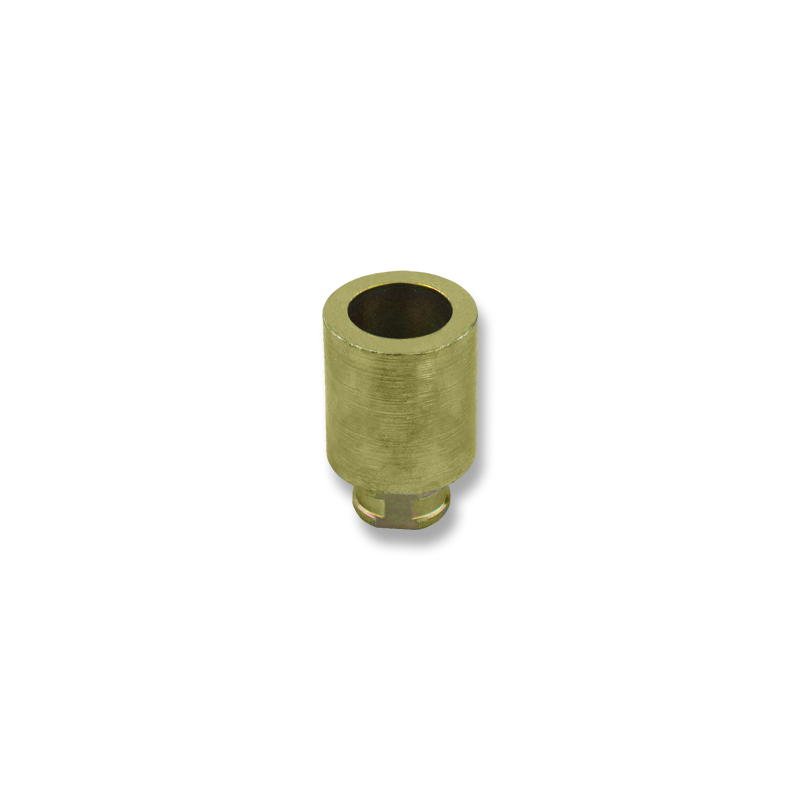

LMP 5/8 Vertigo Plug		Lagmaster® Plus 5/8" Vertigo Plug - Open ended 5/8" hex socket - Installs Powers Vertigo screws pre-attached to 1/4" or 3/8" threaded rod
LMP 1/2 Square Plug		Lagmaster® Plus ½" Square Plug - 1/2" male socket adapter – Accepts standard 1/2” sockets
LMP 1/4 Hex Plug		Lagmaster® Plus ¼” Hex Plug – 1/4" drive socket - Accepts standard ¼” hex bits
LMP Viper Plug		Lagmaster® Viper Plug - Threaded adapter for Viper 2, Viper 3 and Powers Sniper
LMP 1/2 NPT Plug		Lagmaster® Plus ½” National Pipe Thread Plug – Threaded adapter for Doc's® HOIT-AL joist clip installation tool
LM Driver - Large		Lagmaster® Driver – For use with three stage poles (LMGP-12, LMP-18, LMP-24)
LM Driver - Small		Lagmaster® Driver – For use with two stage poles (LMP-6, LMP-12)
LM Stud		Lagmaster® Stud – 3/8" Hex shaft - component of LM Drivers
Wire Bale Pin		Lagmaster® ® Wire Bale Pin
Button Head Screws		Lagmaster® ® Button Head Screws - 1/4"-28 threads - Secures LM Head and LM Drivers

Parts Sold Separately

Item #:	Image:	Description:
LMP Wire Plug W (welded)		Lagmaster® Plus Wire Plug - Welded version - Hangs & wraps 12GA ceiling wire attached to an I-LAG™ screw
LMP Pre-Wrap Plug		Lagmaster® Plus Pre-Wrap Plug – Installs I-LAG™ screws pre-tied to 12GA ceiling wire
LMP Keyless Chuck Plug		Lagmaster® Plus Keyless Chuck Plug - Keyless chuck adapter for use with drill bits and hex bits - Chuck size is 0.8-10mm (0.031” -0.39”)
LMP Purlin Plug		Lagmaster® Plus Purlin Plug – Hangs & wraps 12GA ceiling wire to "C" & "Z" Purlin/Joist clips
LMP 9/16 Plug		Lagmaster® Plus 9/16" Plug – Open ended 9/16" hex socket - For setting 3/8" wedge anchors or concrete screws
LMP 3/8 Plug		Lagmaster® Plus 3/8” Plug – Open ended 3/8" hex socket - Installs Elco screws pre-attached to 1/4" or 3/8" threaded rod

FAQs

General

What are Lagmaster poles used for?

Lagmaster poles let you install overhead fasteners from the ground. You use them to place ceiling wire, jack chain, I-Lag screws, threaded rod attachments, and other overhead hardware without climbing a ladder.

How do Lagmaster poles improve safety?

You stay on the ground while installing fasteners. This removes the need for repeated ladder climbs, cuts your risk of falls, and keeps your crew working in safer positions.

Where are these poles typically used?

Contractors use them in acoustical ceilings, data centers, HVAC runs, fire sprinkler work, electrical installs, warehouse ceilings, stairwells, and any tight or elevated space where lifts aren’t practical.

Do Lagmaster poles work in narrow or obstructed spaces?

Yes. Their slim telescoping design gives you reach in areas where scissor lifts and ladders can’t fit, including between T-bar grids and above existing ceiling systems.

Installation and Usage

What tools can you attach to a Lagmaster pole?

The poles accept plugs and adapters for fasteners such as wire, jack chain, smooth rod, hex-drive screws, and overhead hardware. Some versions also accept plug-in accessories stored in a dedicated kit.

Can you use different drills with Lagmaster poles?

Yes. They pair with standard 3/8" or 1/2" drills. The saddle fits common drill body shapes, including pistol grip and D-style rotary drills.

How high can you install fasteners using a Lagmaster pole?

The maximum reach depends on the model. Different poles extend to varying heights, giving you coverage for low ceilings and high commercial installations.

Do Lagmaster poles support multiple stages of extension?

Yes. Each pole has a defined number of telescoping stages that lock into position for stable overhead installation.

Can you use the pole to install several fastener types without changing tools?

Some versions include a plug-in system that accepts different heads. This lets you switch between fastener types quickly on the job.

Maintenance and Longevity

What are these poles made from?

They use black anodized aircraft-grade aluminum. This makes them lightweight, durable, and resistant to wear in daily jobsite use.

How should you maintain a Lagmaster pole?

Keep the telescoping sections clean, avoid forcing jammed plugs, and check locking points regularly. Wipe off dust and debris after heavy-use days to keep the sliding action smooth.

Does the anodized finish wear out?

Not under normal use. The finish is designed to hold up during repetitive ceiling work, transport, and storage.

Jobsite Use and Efficiency

Can a single technician operate a Lagmaster pole?

Yes. The poles are designed for one-handed height adjustment and simple overhead placement, so one installer can handle the full operation.

Do they reduce installation time?

Yes. You complete overhead fastening in one motion without repositioning ladders or lifts, which shortens install time significantly.

Are they suitable for daily commercial use?

Yes. The construction, materials, and design support constant use in large-scale jobs such as warehouse retrofits and full-grid ceiling installs.

Can the poles reach into stairwells or above staircases?

Yes. They’re built specifically for areas that cannot accommodate lifts or where ladder positioning is unsafe.

Purchase and Availability

Where is Doc’s Industries based?

Doc’s Industries is based in Simi Valley, CA. Our team is dedicated to providing quality products and above and beyond service to customers globally.

Are Lagmaster poles available for immediate purchase?

Stock is maintained regularly. For current availability or lead times, check with an authorized distributor or contact the sales team.

Do you supply to wholesale and retail customers?

Doc’s Industries services wholesale accounts. Please use the “where to buy” function on our website to be connected to the nearest distributor.
