The HOCL-6 90 degree angle clip is designed to accommodate 3/8″ threaded rod. This clip is recommended for indoor applications.
Products Category: Angle Clips
Doc’s Industries manufactures specialty angle clips and seismic splay clips for suspended ceiling installation. Many of our angle clips are designed to conform with California’s DSA IR 25-2.13 for drop ceiling installation. We offer everything from light duty 90 degree angle clips to heavy duty 12 gauge 45 degree angle clips for seismic bracing.
90 Degree Angle Clip – 316 Stainless Steel
The Stainless Steel HOCL-1SS Angle Clip is 0.75” wide and has a 1.25” leg with a 0.22” hole that will accommodate a standard drywall screw. The other leg is 1” with a 0.37” hole that will accommodate 1/4″ x 20 threaded rod. The thickness of this clip is 14 gauge.
90 Degree Angle Clip w/ 1/4″ Holes – 14 gauge
14 gauge 90° angle clip. Each hole is designed to work with a ¼” fastener. The extra-long leg provides plenty of clearance when attaching Doc’s J Hooks to horizontal surfaces.
90 Degree ANGLE CLIP w/ 1-1/16” X 0.157” DIA. PIN
Doc’s® 1-1/16” x 0.157” diameter pin & clip assembly installs easily using powder-actuated or single-shot gas-actuated tools. Use it to attach 12 gauge ceiling wire or a variety of other Doc’s® fasteners.
HOCL-12 ANGLE CLIP
The HOCL-12 is a seismic splay clip for metal decking. The holes of the HOCL-12 will accommodate two small screws up to 1/4″ diameter (to be installed into a variety of decking configurations) and one 5/8″ expansion anchor. The 5/8″ hole can be used with 5/8″ expansion anchors or concrete screws with ceiling wire tied… Continue reading HOCL-12 ANGLE CLIP
45 Degree Steel Strap Angle Clip – 12 Gauge
The HOCL-11 is a seismic angle clip for metal decking. The holes of the HOCL-11 will accommodate two #10 screws and one 3/8” expansion anchor or concrete screw. Either outer hole may be used to tie ceiling wire. This allows the HOCL-11 to be installed in a variety of configurations.
Offset Hanger Support Angle Clip
The HOCL-10 is a 12 gauge offset hanger support angle clip. It is 1″ wide at the widest point and ¾” wide at the narrowest point. It has a 2″ drop down leg with two offset 1/4″ holes and three 21/64″ holes that are approximately 1″ apart on the longer 3.5″ leg. Designed specifically for… Continue reading Offset Hanger Support Angle Clip
Standoff Deck Angle Clip
The HOCL-7 is 3/4” wide and has a 1.5” drop down leg with one 1/4” hole on the 1” leg and one 1/4″ hole on the 3/4″ leg.
45 Degree Steel Strap – 12 Gauge
The HOCL-9 is a seismic splay clip for metal decking. The holes of the HOCL-9 will accommodate two small screws up to 1/4″ diameter and one 5/8” expansion anchor. Either outer hole may be used to tie ceiling wire. This allows the HOCL-9 to be installed in a variety of configurations.
45 Degree Steel Strap – 12 Gauge

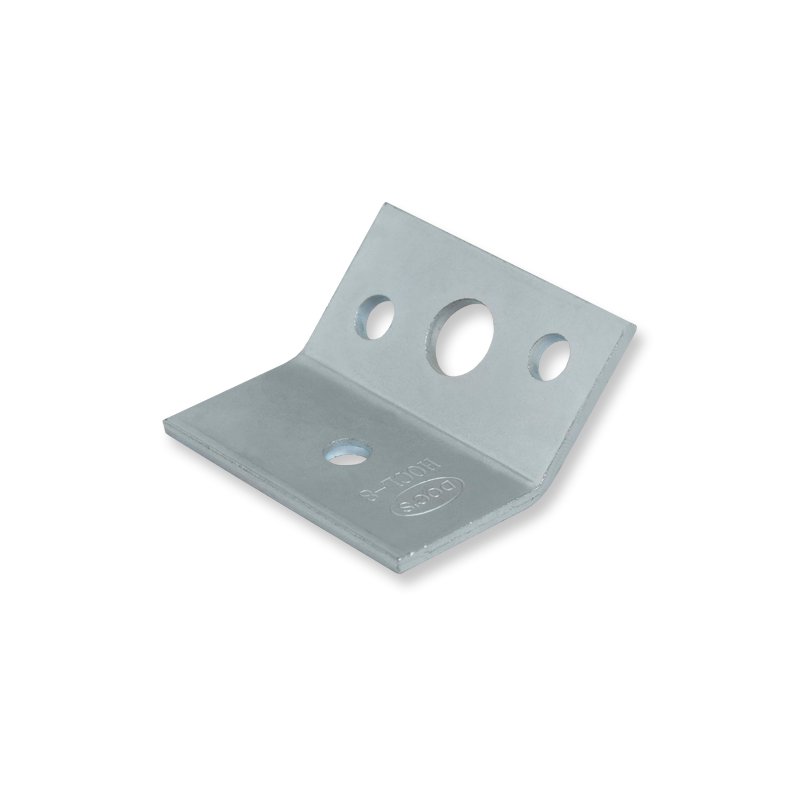

The HOCL-8 is a seismic splay clip for roof decking. The holes of the HOCL-8 allow for at least 3 – #8 or #10 self-tapping framing screws to be installed into a variety of decking configurations. The HOCL-8 also features a 3/8″ hole for use with expansion anchors or concrete screws.
