PurlinMaster™

Product Code: PurlinMaster

The PurlinMaster™ is a multi-purpose pole tool used to install purlin clips and wrap ceiling wire all in one motion from the ground. The patented purlin head makes it possible to install a purlin clip and then wrap a ceiling wire onto the clip using the same tool. The PurlinMaster™ also includes an interchangeable head that allows it to install any standard eye lag screw. There are several other interchangeable heads sold separately. Such as a 1/2″ male socket adapter, female adapter for ¼” hex bits, special heads for hanging threaded rod or jack chain and more!

Product Code	Collapsed Length	Extended Length	Stages	Shipping Weight
PM-6	3′ 6″	5′ 6″	2	4 lbs.
PMG-12	4′ 6″	10′ 9″	3	6 lbs.
PM-12	6′ 6″	11′ 8″	2	6 lbs.
PM-18	7′ 5″	17′	3	7 lbs.
PM-24	8′ 7″	23′ 3″	3	9 lbs.

Where to buy?

Submittal Request

videos

features

All-in-one patented plug-in system allows you to install multiple types of fasteners to a variety of ceiling structures
Includes: LMP Purlin Head, LMP Base and LMP Wire Plug (Welded)
Perfect for applications that are unfit for scissor lifts such as stairwells or in between T-bar
Improves safety by keeping your employees on the ground
Faster installation times, no need to pre-wrap ceiling wire to the clips prior to installation
Black anodized aircraft aluminum
Lightweight and durable
Made in USA

Components:

LMP Purlin Plug – Lagmaster® Plus Purlin Plug-in – Purlin Clip Installation Tool

documentation

PurlinMaster flyer PurlinMaster Instructions PurlinMaster Parts Diagram How to replace an LM-STUD

Parts

Item #:	Image:	Description:
Button Head Screws
LM Driver - Large		Three Stage Poles
LM Driver - Small		Two Stage Poles
LMP Base
LMP Purlin Plug

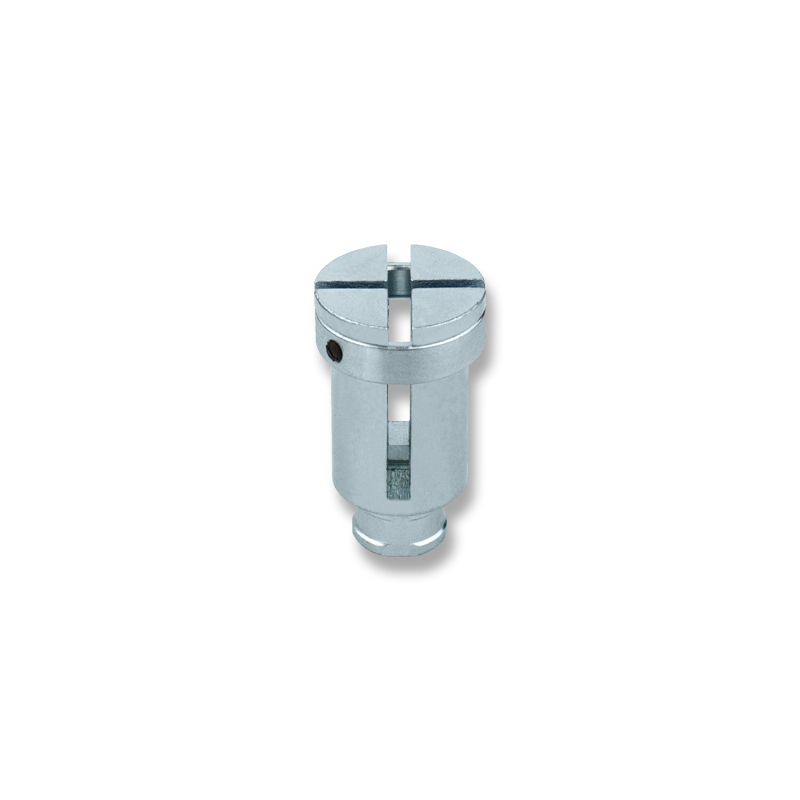

LMP Wire Plug
Wire Bale Pin

Parts Sold Separately

Item #:	Image:	Description:
LMP 1/2 NPT Plug
LMP 1/2 Square
LMP 1/4 Hex Plug
LMP 3/8 Plug
LMP 5/8 Plug
LMP 5/8 Vertigo
LMP 9/16 Plug
LMP BT
LMP Keyless Chuck
LMP Pre-Wrap Plug
LMP Viper Plug
LMP Wire Bale Plug
LM Stud

FAQs

General

What is a PurlinMaster?

A PurlinMaster is a versatile overhead installation pole that lets you set purlin clips and wrap ceiling wire in a single step while working from the ground. Its patented head design allows you to place the clip and wrap the wire without needing to pre-wrap anything beforehand.

What makes the PurlinMaster different from a standard lag pole?

Unlike basic poles that install only eye lag screws, the PurlinMaster handles both purlin clips and ceiling wire installation in one step. It also accepts interchangeable plug-ins for tasks like installing threaded rod hangers, hex bits, or eye lag screws.

Where is the PurlinMaster typically used?

Trades use it in commercial, industrial, and institutional buildings where overhead fastening is required. It’s designed for tight areas, stairwells, and places where lifts or ladders are unsafe or impractical.

Compatibility and Use

Which fasteners work with the PurlinMaster?

The tool installs purlin clips, wraps ceiling wire, and accepts plug-ins for various fastener types. Available plug-ins allow you to use hex drivers, threaded-rod adapters, wire-plug assemblies, and eye lag installers.

What drill do you need for the PurlinMaster?

The pole works with any standard 3⁄8" or 1⁄2" drill. The drill provides the rotation needed for the interchangeable plug-ins.

Does the PurlinMaster require pre-wrapping ceiling wire?

No. The patented head holds the purlin clip while the pole wraps the wire around it in one step, reducing installation time.

Can the PurlinMaster install eye lag screws?

Yes. You can attach the interchangeable eye lag adapter to install standard eye lag screws overhead.

Is the PurlinMaster compatible with Lagmaster® Plus plug-ins?

Yes. The system uses Lagmaster® Plus plug-ins, which allow you to install a wide range of overhead fasteners with the same pole body.

Performance and Safety

How high can the PurlinMaster reach?

Models vary in length, with extended heights ranging from roughly 5' to over 23', depending on the version. This allows installers to work safely from the ground in most commercial spaces.

Does the tool improve jobsite safety?

Yes. By keeping installers on the ground instead of on ladders or lifts, it reduces fall risk and speeds up overhead work.

What is the pole made of?

The PurlinMaster is built from black anodized aircraft-grade aluminum. This makes it lightweight, durable, and suitable for daily jobsite use.

Is any special training needed?

No formal training is required, but users should understand how to load the plug-ins, position the pole, and operate the drill safely.

Can one person operate the PurlinMaster?

Yes. The design allows a single installer to place purlin clips and wrap ceiling wire without assistance.

Purchase and Availability

Where is Doc’s Industries based?

Doc’s Industries is based in Simi Valley, CA. Our team is dedicated to providing quality products and above and beyond service to customers globally.

Are different pole sizes available for various project needs?

Yes. Multiple pole lengths are available, allowing you to choose the size that fits your installation height and jobsite needs.

Are plug-ins sold separately?

Yes. Interchangeable plug-ins can be purchased individually so you can configure the pole for different applications.

Do you supply to wholesale and retail customers?

Doc’s Industries services wholesale accounts. Please use the “where to buy” function on our website to be connected to the nearest distributor.
